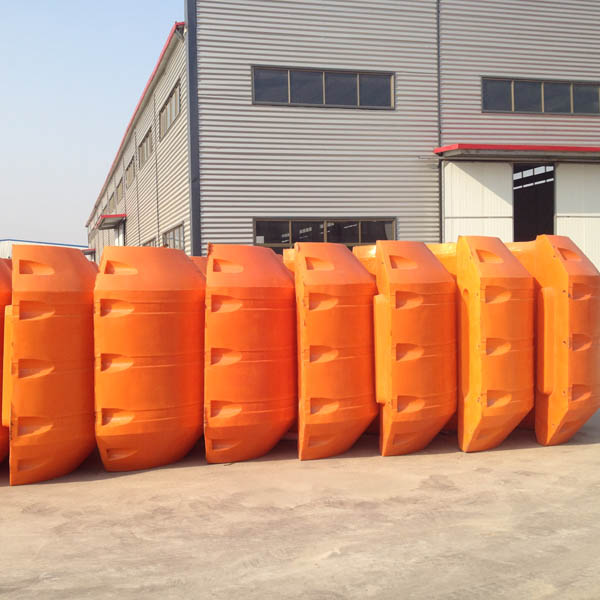

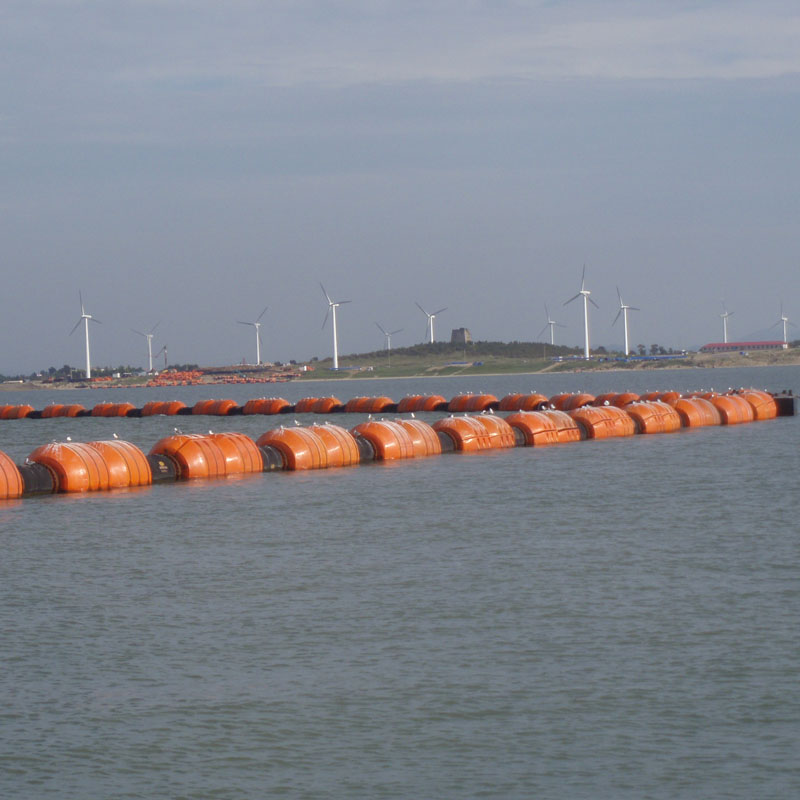

Dredge Pipe Floats is the object like floating plate that can provide buoyancy so that it can work above water or slurry which can’t work on land by the buoyancy. The floating for the discharge hose, its outer shell made of medium density polyethylene (MDPE) who has the higher compressive strength and excellent toughness. Filled with the plastic shell by high strength and high buoyancy PURF. The floating is the best choice of the discharge hose floating materials cause of shock resistance, anti-wave, reasonable compact structure, easy for installation and high performance.
Specification:
|
The shell of MDPE floater is made from excellent flexibility of medium density polyethylene material, inside of shell is filled with high strength polyurethane foam. |
||||
|
Pipe I.D. |
Floater
I.D. |
Floater
O.D. |
Floater
Length |
Remark |
| mm | mm | mm | mm | |
| 200 | 220 | 500 | 800 |
2 pieces per complete floater |
| 285 | 300 | 700 | 1200 | |
| 350 | 375 | 1100 | 1100 | |
| 400 | 414 | 1100 | 1200 | |
| 414 | 430 | 1200 | 1200 | |
| 450 | 480 | 1300 | 1300 | |
| 500 | 530 | 1400 | 1500 | |
| 550 | 580 | 1400 | 1600 | |
| 600 | 630 | 1400 | 1700 | |
| 650 | 680 | 1480 | 1800 | |
| 700 | 730 | 1600 | 1900 | |
| 750 | 780 | 1600 | 2000 | |
| 800 | 830 | 1800 | 2000 | |
| 850 | 880 | 1800 | 2200 | |
| 900 | 940 | 2200 | 2500 | |
|
Other sizes of floaters can be made upon request |
||||
