BASIC INFO

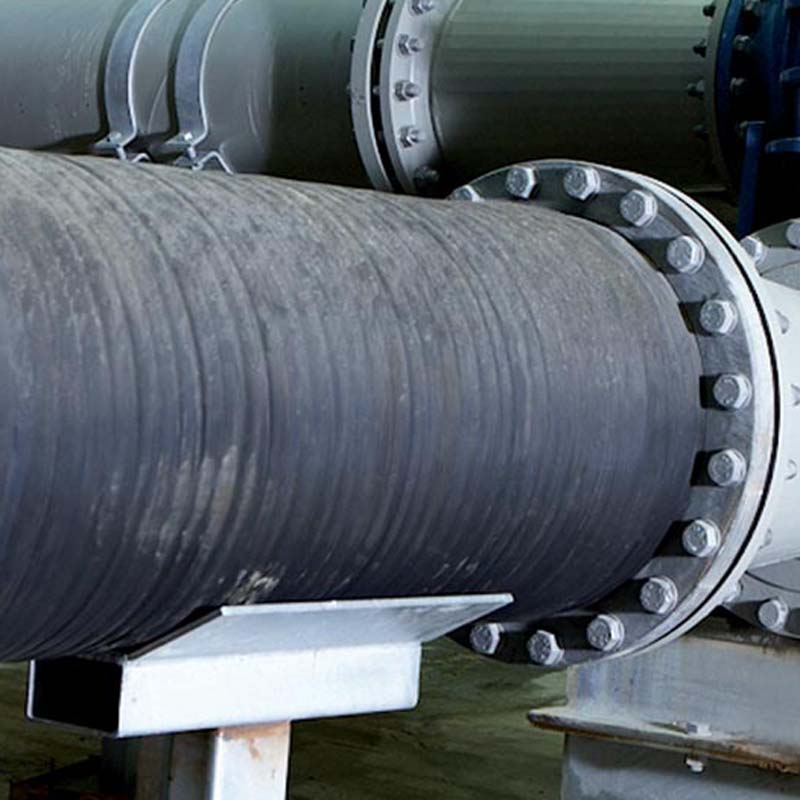

To achieve the required working pressures, mining hose is constructed of woven cord materials such as rayon, polyester or aramid fibers and steel reinforcing components in the form of spiral wire or rings and flanges. These hand built hoses may also be ceramic lined.
Our mining hose is available with inside diameters up to 1200mm and working pressure of 1.4MPa.
The mining hoses are supplied with integral or loose fitting flanges.
Specialty flexible mining hoses are critical components for effective and efficient material handling in heavy media and slurry processing plants.
| Hose Size mm |
Flange | Sleeve | Maximum Diameter of Fitted Assembly mm |
Approx Weight kg |
|||
| No. of Holes |
Bolt Size mm |
P.C.D. mm | No. of Clamping Holes |
Bolt Size mm |
|||
| 75 | 4 | M16 x 70 | 146 | 4 | M12 x 70 | 203 | 3.6 |
| 100 | 4 | M16 x 70 | 178 | 4 | M12 x 70 | 215 | 4.5 |
| 125 | 8 | M16 x 70 | 210 | 6 | M12 x 70 | 254 | 5.9 |
| 150 | 8 | M16 x 70 | 235 | 6 | M12 x 70 | 280 | 6.8 |
| 200 | 8 | M16 x 80 | 292 | 6 | M16 x 80 | 335 | 10.8 |
| 250 | 8 | M20 x 80 | 356 | 6 | M20 x 100 | 405 | 16.6 |
| 300 | 12 | M20 x 80 | 406 | 6 | M20 x 100 | 455 | 23 |
